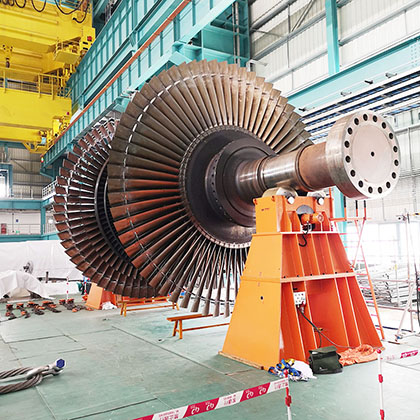

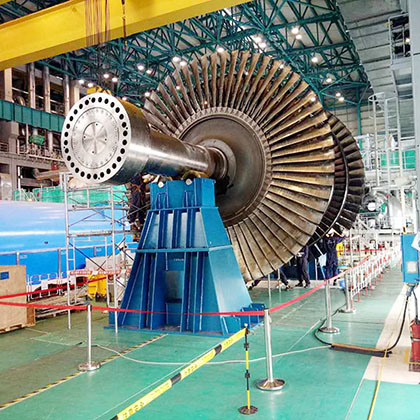

Product Description ZT series rotor stand with copper/nylon rollers for rotor maintenance is the domestic rotor stand with very good design at present. It is composed of electric and non-electric components which are divided into high and medium pressure rotor stand, low pressure rotor stand and generator rotor stand and small turbine rotor stand. Rotor stand is equipped with protective cover, and low pressure rotor stand is equipped with auxiliary working platform or roping ladder. Product Display

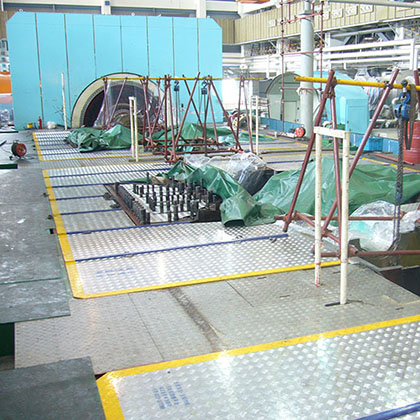

Product Description JXPT turbine low-pressure cylinder maintenance platform is a working platform that can be quickly covered on the horizontal Joint after opening the low-pressure cylinder during maintenance of turbine unit. The main cover plate of maintenance platform is designed to be folded. The cover plates of inner and outer cylinders are made of 6~8 mm thick high-quality anti-slip checkered aluminum plate. The cover plates of outer low-pressure cylinder are fully connected with the main cover plates by supporting rods in operations. The requirement of covering the exhaust vents after turbine inner and outer cylinder uncovering is completely met. To reuse the platform next time, they can be placed in special storage shelves or boxes. The maintenance platform features fast installation, safe use and beautiful appearance. The maintenance platform can save a lot of wood and preparation time for power plant maintenance. It can reflect the civilized maintenance of power plant…
Product Description It is a special equipment for removing the generator rotor for maintenance and insert it back after the maintenance. The original method to remove and install generator rotor by drawing the chain block manually is no longer necessary. The generator rotor can be removed and installed into the specified position safely at one time under the electric button control. The device is equipped with a clutch design. After gear separating, the wire rope can be quickly retracted and released with the hand wheel (the maximum traction force is 23t). The principle of the device for removing generator rotor is: Connect the flange dedicated for removing generator rotor to the excitation side of generator rotor, assemble the balancing pulley group, connect it with the device then remove the rotor with a wire rope. The principle of the device for inserting generator rotor is: Insert the rotor into the generator…

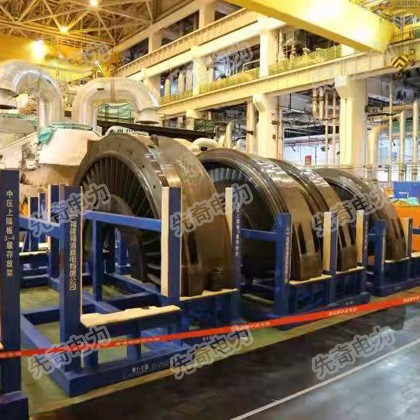

Product Description Turbine diaphragm bracket is made of rectangular steel pipe, and the diaphragms are placed vertically. It includes upper and lower diaphragm bracket, and the places where diaphragm bracket contacts with diaphragm is separated by nylon plate or aluminum plate. The place of maintenance site will be greatly saved and diaphragms are placed orderly by using this equipment. Product Display [caption id="attachment_242" align="alignnone" width="800"] SONY DSC[/caption] [caption id="attachment_243" align="alignnone" width="800"] SONY DSC[/caption]
Product Description During the maintenance of turbine in nuclear power plant or other power plant, the inner and outer cylinder bolts of high and low pressure cylinder should be removed, a lot of space is occupied at the maintenance site when the bolts are removed and placed horizontally, bolts may collide with each other, and it is inconvenient for maintenance when bolts are placed horizontally. The bolts can be placed and taken out safely and conveniently by using of bolt shelf, and maintenance personnel can complete the inspection, flaw detection, finishing and derusting of bolts properly. A full set of bolt shelves may be placed in the maintenance site orderly, so as to realize neat and beautiful effect, save a lot of space and improve maintenance efficiency. The bolt shelves are mainly divided into rotary type, fishbone type and honeycomb type. Among them bolts are stored vertically at rotary bolt…
Product Description QJPC-S/X steam turbine maintenance electric turning gear is a special maintenance equipment for large thermal power plants. When the power plant shuts down for maintenance of the steam turbine unit by using this equipment, maintenance quality can be greatly improved, maintenance period will be shorten, it also reduces the labor intensity of workers, completely abolish the traditional method of pulling the steam turbine rotor with wire, and greatly improve the safety in the maintenance work. Repairing steam turbine with this equipment，reflects civilized maintenance, safe maintenance and efficient maintenance of the power plant, and it can bring very obvious and good economic benefits to the power plant. QJPC-S Product features This QJPC-S top mounted maintenance turning gear with concise and attractive appearance, its small gear meshes with the big gear above the horizontal joint. The rotor can be turned continuous or inching positive and reverse； It is easy to…

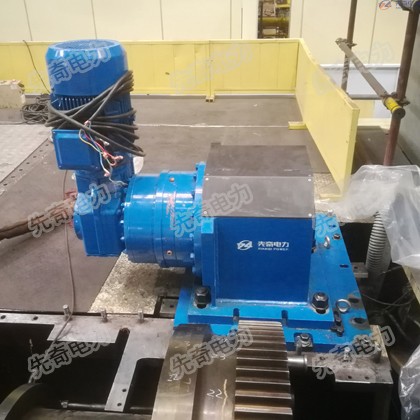

Product Description QJPC-S/X steam turbine maintenance electric turning gear is a special maintenance equipment for large thermal power plants. When the power plant shuts down for maintenance of the steam turbine unit by using this equipment, maintenance quality can be greatly improved, maintenance period will be shorten, it also reduces the labor intensity of workers, completely abolish the traditional method of pulling the steam turbine rotor with wire, and greatly improve the safety in the maintenance work. Repairing steam turbine with this equipment，reflects civilized maintenance, safe maintenance and efficient maintenance of the power plant, and it can bring very obvious and good economic benefits to the power plant. QJPC-X Product features This QJPC-X bottom mounted maintenance turning gear with concise and attractive appearance, its small gear meshes with the big gear under the horizontal joint. The rotor can be turned continuous or inching positive and reverse; It is fixed on…

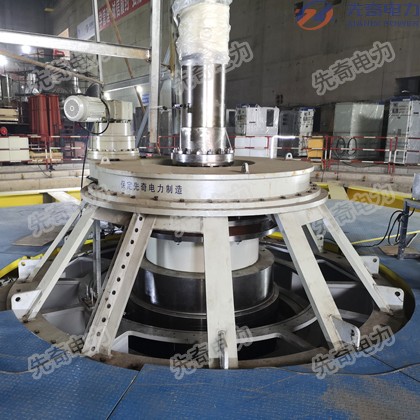

Product Description Type SDPC electric turning gear of hydraulic turbine is a special equipment for installation and maintenance of hydraulic turbine generator units in hydropower stations. It can perfectly meet the requirements of rotating the rotor of the complete shaft system of the hydraulic turbine generator unit, and can safely and smoothly align the rotor and shaft coupling center, check clearance of each part in a short time. It completely eliminated the traditional and outdated manual barring, mechanical barring (wire rope barring) and electrical barring, which doubled the efficiency of installation and maintenance of hydraulic turbine generator units. Product features Light and practical design, simple and convenient installation, continuous or inching positive and reverse turning rotor; Low output speed (0.5~1 r/min), high torque, stable rotation, the rotor turning stops accurately, and there is no idling phenomenon; After turning the rotor in place, press the inching reverse button to ensure that…
Baoding Xianqi Power Equipment Technology Co., Ltd. is located at 20#101, Liandong U Valley, No. 64 Jingsan South Street, Mancheng District Economic Development Zone, Baoding City, Hebei Province, with a construction area of 3431.4 square meters. It was established in 1996 and is a A technical company focusing on R&D, production and sales of special maintenance equipment and maintenance tools for nuclear power, thermal power, hydropower and wind power.
Read MoreManufacture the most sophisticated products, provide the most satisfactory service, and lead the safest maintenance.
Our company has more than 40 sets of advanced and excellent production equipment and a total of 56 employees.
Our company is located in Mancheng Economic and Technological Development Zone, Baoding City, Hebei Province.
A high level of enterprise management, providing novel and professional product design, high-quality product manufacturing.
